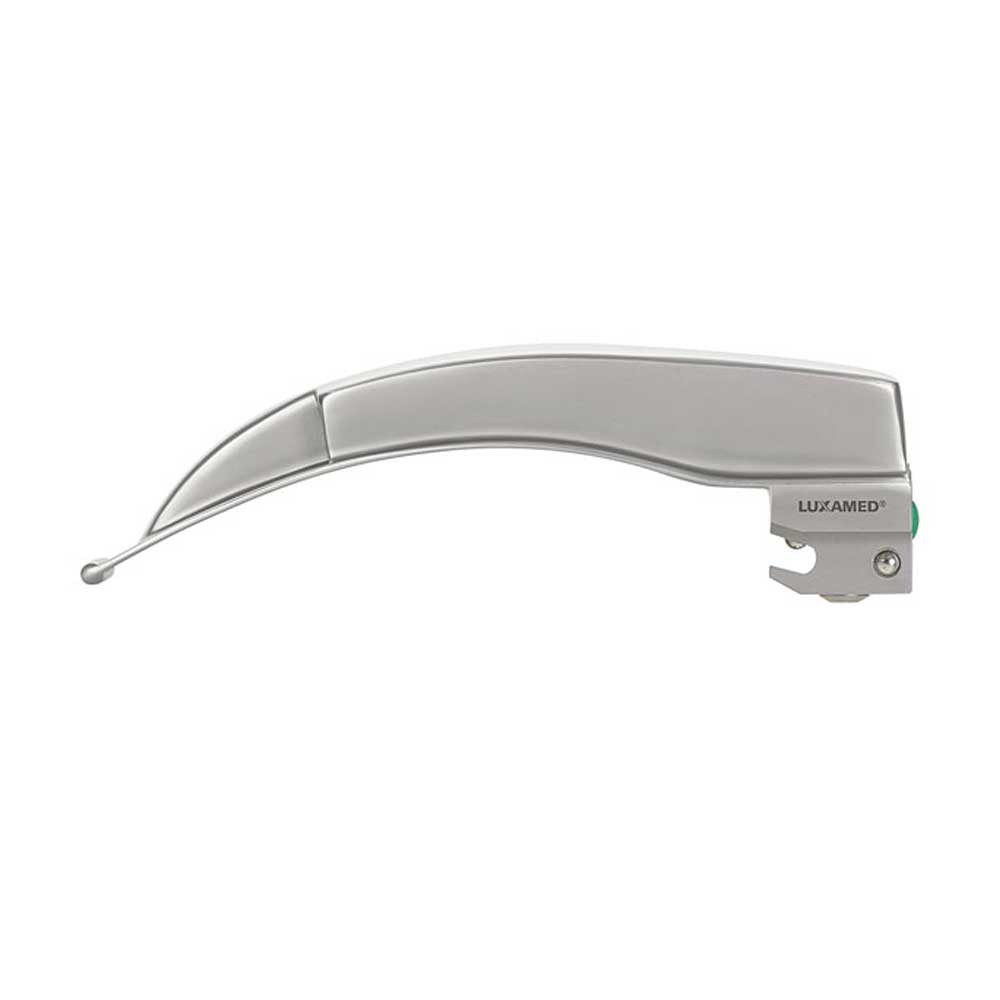

Luxamed F.O. Macintosh Blade Integrated Light Guide, size 3C
Product details – F.O. Macintosh Blade with Integrated Light Guide
The Luxamed F.O. Macintosh Blade with integrated light guide is usable with laryngoscopes by Luxamed and is available in several different sizes.
The F.O. Macintosh blade by Luxamed uses an integrated light guide with 8.000 fibres for maximal brightness. It also has long service life. The 3.7 V LED version offers a brightness of approximately 14.000 Lux, while the 2.5 V xenon variant reaches circa 6.500 Lux. The stainless steel blade is compatible with all Luxamed handles in accordance with ISO 7376 (green standard). It is autoclavable up to 134 Degrees Celsius – for approximately 4.000 times. The Macintosh blade is available in several different sizes.
Properties of the F.O. Macintosh Blade
- blade for laryngoscopes
- integrated light guide
- 8.000 fibres
- optimal illumination
- long service life
- brightness 2.5 V xenon: circa 6.500 Lux
- brightness 3.7 V LED: circa 14.000 Lux
- stainless steel
- compatible with all Luxamed handles in accordance with ISO 7376 (green standard)
- autoclavable up to 134 Degrees Celsius – approx. 4.000 times
- different sizes available
Variants of the F.O. Macintosh Blade
- Mac 0: length: 81 mm, height: 14 mm
- Mac 1: length: 92 mm, height: 14 mm
- Mac 2: length: 114 mm, height: 17 mm
- Mac 3: length: 134 mm, height: 18 mm
- Mac 3C: length: 134 mm, height: 18 mm (stronger curve for difficult intubations)
- Mac 4: length: 154 mm, height: 18 mm
- Mac 5: length: 174 mm, height: 23 mm
Luxamed Medizintechnik is a German manufacturer of medical technology products, which are manufactured in Germany in highly qualified manual work. Luxamed is known for making excellent otoscopes, stethoscopes, laryngoscopes and other medical devices for daily use in doctors' offices and hospitals. Here in the shop you will also find examination lights, reflex hammers and accessories such as replacement handles, spatulas or lamps for the diagnostic devices of established brands such as Luxascope in the versions Auris, Flex or Kids.
