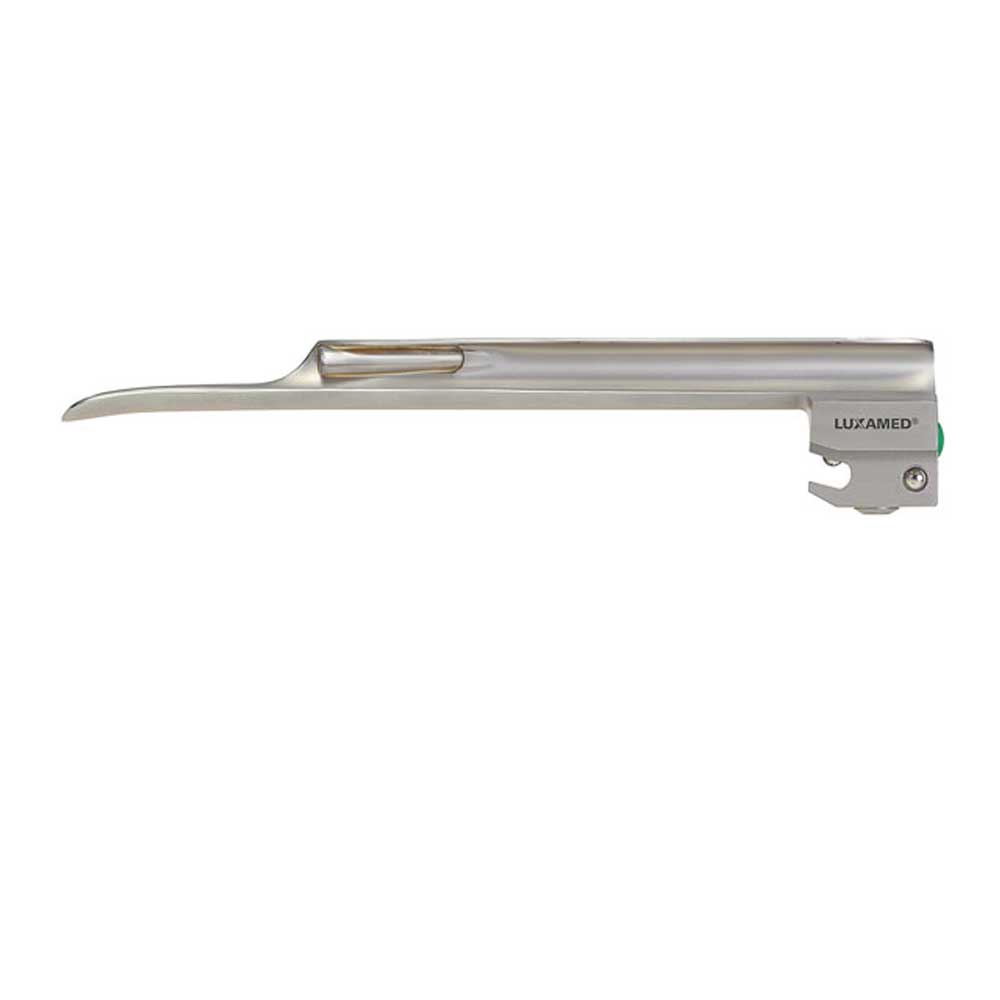

Luxamed F.O. Miller Blade Integrated Light Guide, size 0
Product details – F.O. Miller Blade with Integrated Light Guide
The Luxamed F.O. Miller Blade with integrated light guide is suitable to be used with laryngoscopes by Luxamed and is available in several different sizes.
The F.O. Miller blade by Luxamed with integrated light guide uses 5.500 fibres for maximum brightness. It also has a long service life. The diameter of 4 mm ensures optimal illumination. The 3.7 V LED version of this blade has a brightness of approximately 10.500 Lux. The 2.5 V xenon variant reaches circa 4.500 Lux. The blade is made of stainless steel and is compatible with all Luxamed handles in accordance with ISO 7376 (green standard). It is autoclavable up to 134 Degrees Celsius – 4.000 circa cycles. The Miller blade is available in several different sizes.
Properties of the F.O. Miller Blade
- blade for laryngoscopes
- integrated light guide
- diameter 4 mm
- optimal illumination
- long service life
- brightness 2.5 V xenon: circa 4.500 Lux
- brightness 3.7 V LED: circa 10.500 Lux
- stainless steel
- compatible with all Luxamed handles in accordance with ISO 7376 (green standard)
- autoclavable up to 134 Degrees Celsius – approx. 4.000 times
- different sizes available
Variants of the F.O. Miller Blade
- Mil 00: length: 65 mm, height: 11 mm
- Mil 0: length: 77 mm, height: 11 mm
- Mil 1: length: 102 mm, height: 11 mm
- Mil 2: length: 155 mm, height: 14 mm
- Mil 3: length: 195 mm, height: 15 mm
- Mil 4: length: 210 mm, height: 18 mm
Luxamed Medizintechnik is a German manufacturer of medical technology products, which are manufactured in Germany in highly qualified manual work. Luxamed is known for making excellent otoscopes, stethoscopes, laryngoscopes and other medical devices for daily use in doctors' offices and hospitals. Here in the shop you will also find examination lights, reflex hammers and accessories such as replacement handles, spatulas or lamps for the diagnostic devices of established brands such as Luxascope in the versions Auris, Flex or Kids.
